Description

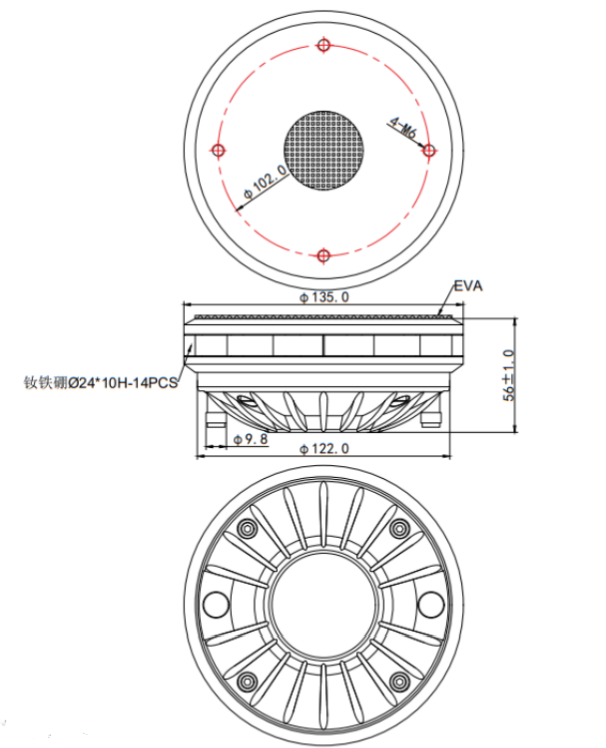

| Model | JS-H7503 | Mounting Information | |
|---|---|---|---|
| Nominal diameter | 1.5“ | Overall diameter | 135 |
| Power rating | 75 | Overall depth | 58 |
| Max power rating | 150 | Mounting diameter | 102 |
| Rated impedance | 8 | Number of mounting holes | 4-M6 |
| Sensitivity | 100 | Throat exit | 1.5“ |
| Frequency range | 700-20K Hz | ||
| Magnet material | Neodymium | ||
| Voice coil diameter | 75 | ||
| Voice coil material | Aluminum | ||
| Diaphragm material | Titanium+PEI |
