Description

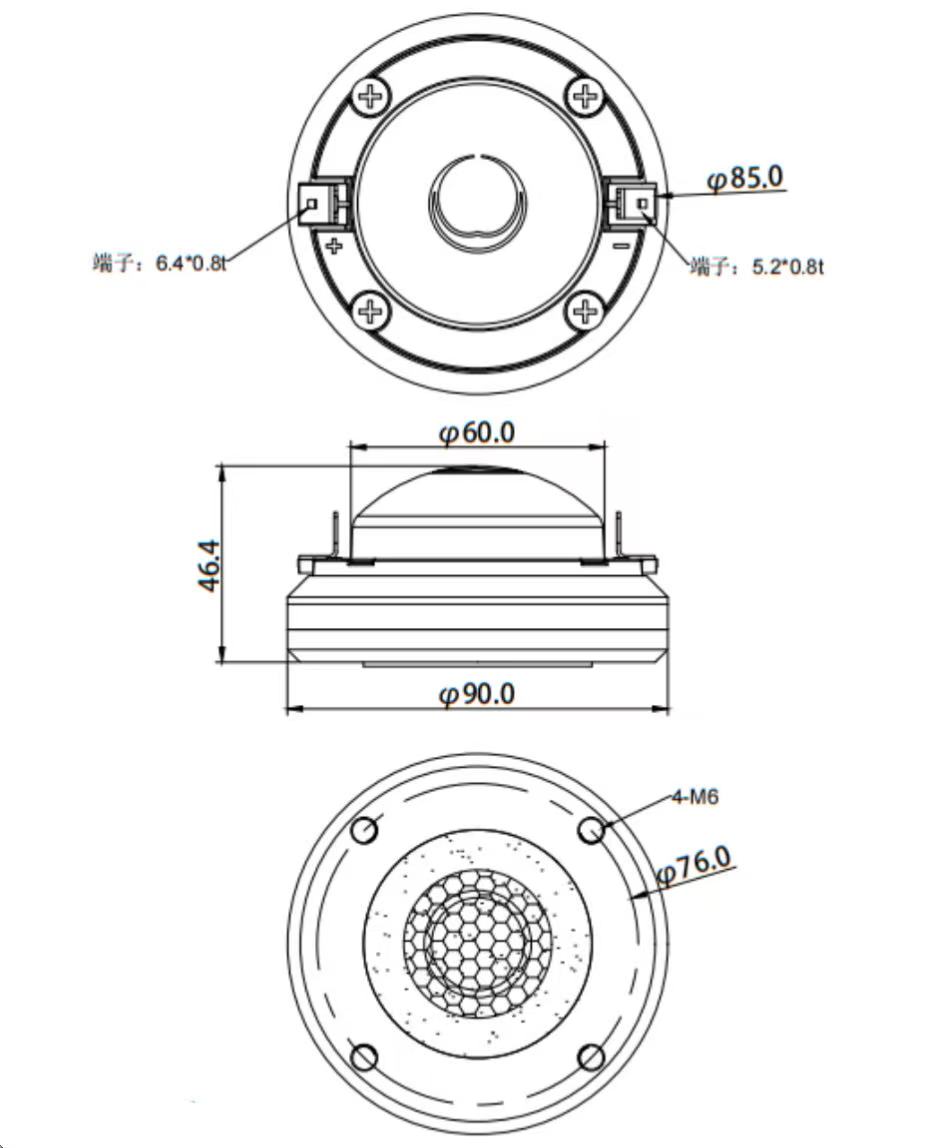

| Model | JS-H5001 | Mounting Information | |
|---|---|---|---|
| Nominal diameter | 2" | Overall diameter | 90 |
| Power rating | 20 | Overall depth | 46.4 |
| Max power rating | 80 | Mounting diameter | 76 |

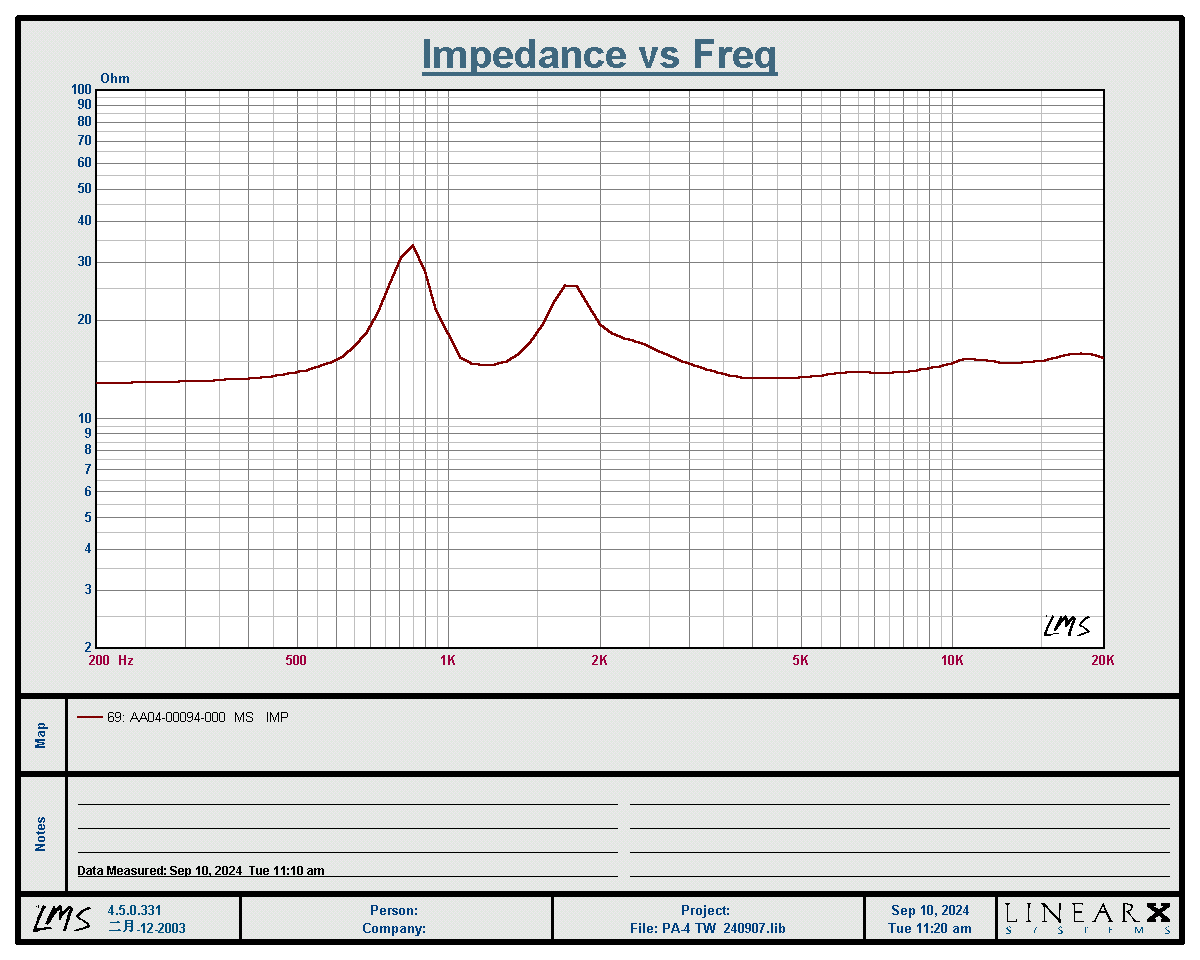

| Rated impedance | 16 | Number of mounting holes | 4-M6 |

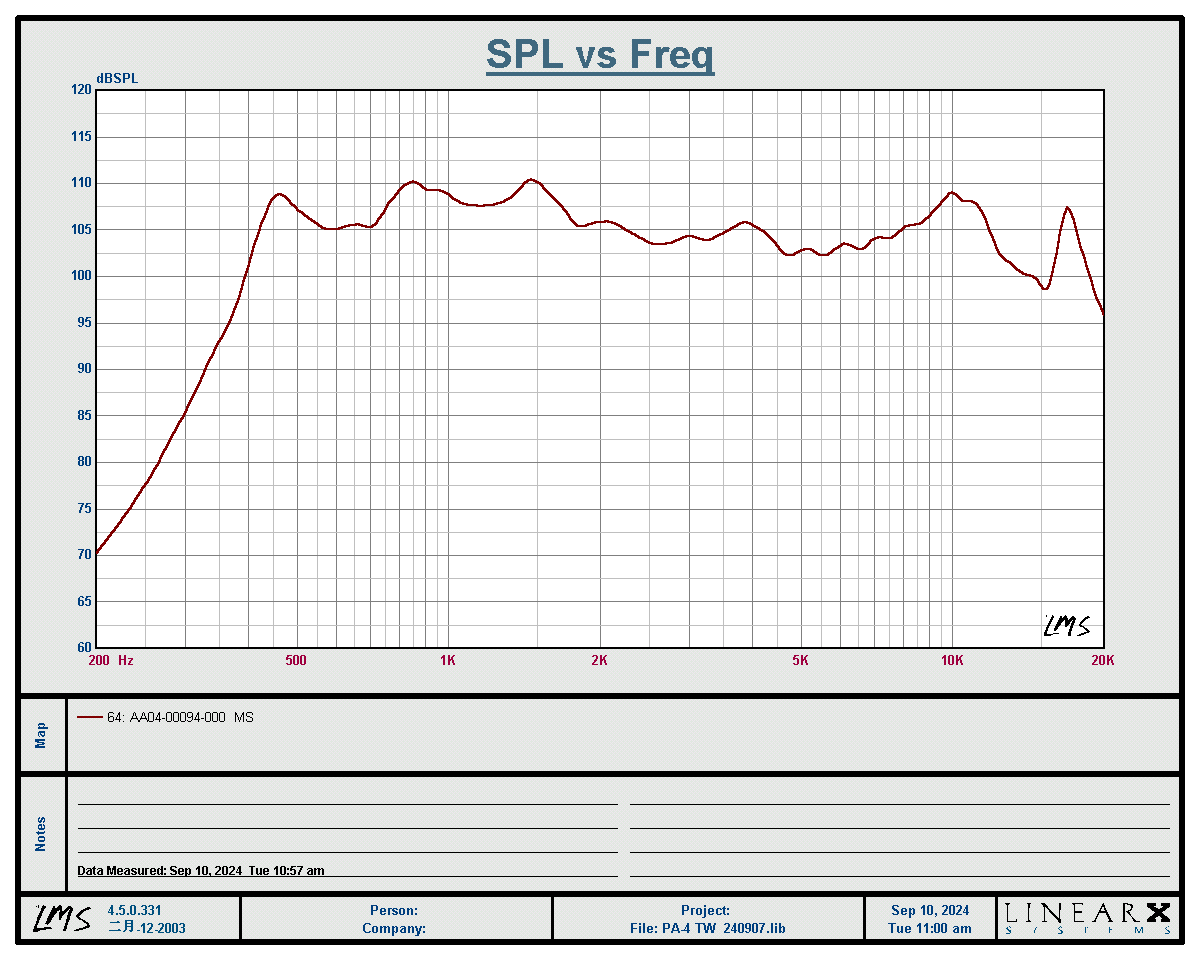

| Sensitivity | 104 | Throat exit | |
| Frequency range | 850-20K Hz | ||
| Magnet material | Neodymium | ||
| Voice coil diameter | 50 | ||
| Voice coil material | Copper | ||
| Diaphragm material | PEI+Aluminum |
