Description

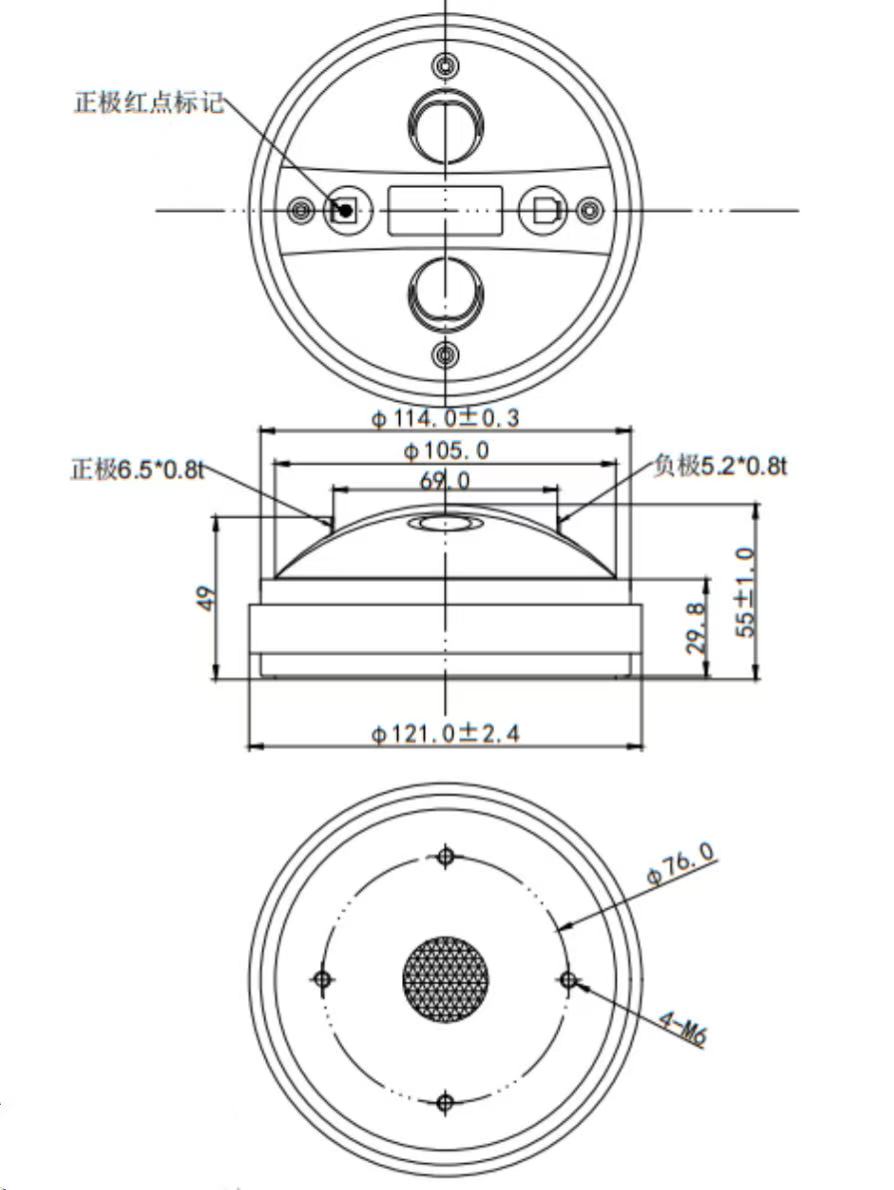

| Model | JS-H4406 | Mounting Information | |
|---|---|---|---|
| Nominal diameter | 1.73" | Overall diameter | 114 |
| Power rating | 30 | Overall depth | 55 |
| Max power rating | 120 | Mounting diameter | 76 |

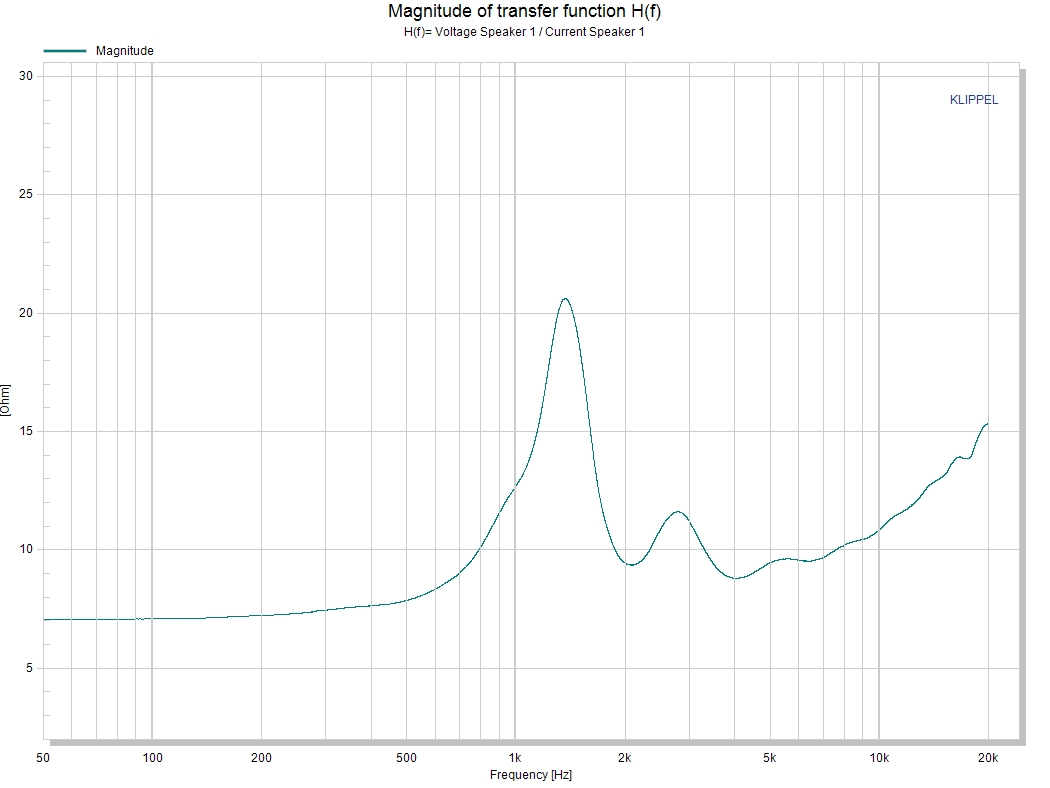

| Rated impedance | 8 | Number of mounting holes | 4-M6 |
| Sensitivity | 106 | Throat exit | 1" |

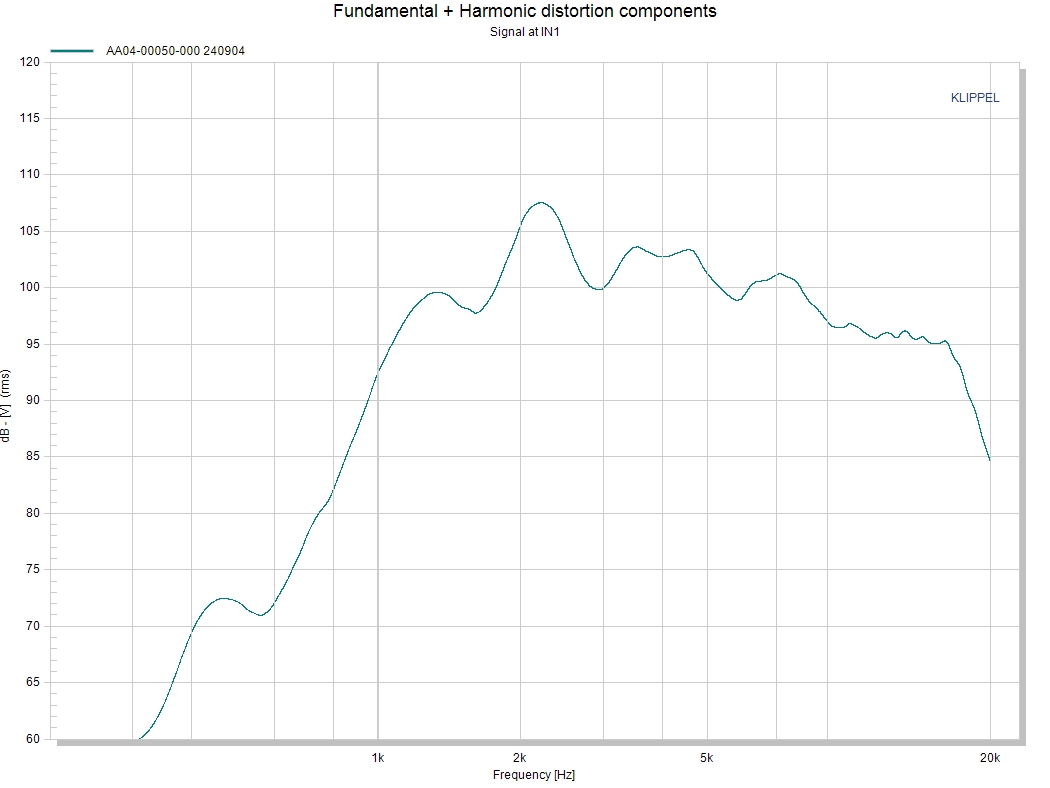

| Frequency range | 1500-20K Hz | ||
| Magnet material | Ferrite | ||
| Voice coil diameter | 44 | ||
| Voice coil material | Copper | ||
| Diaphragm material | PEN |
