Description

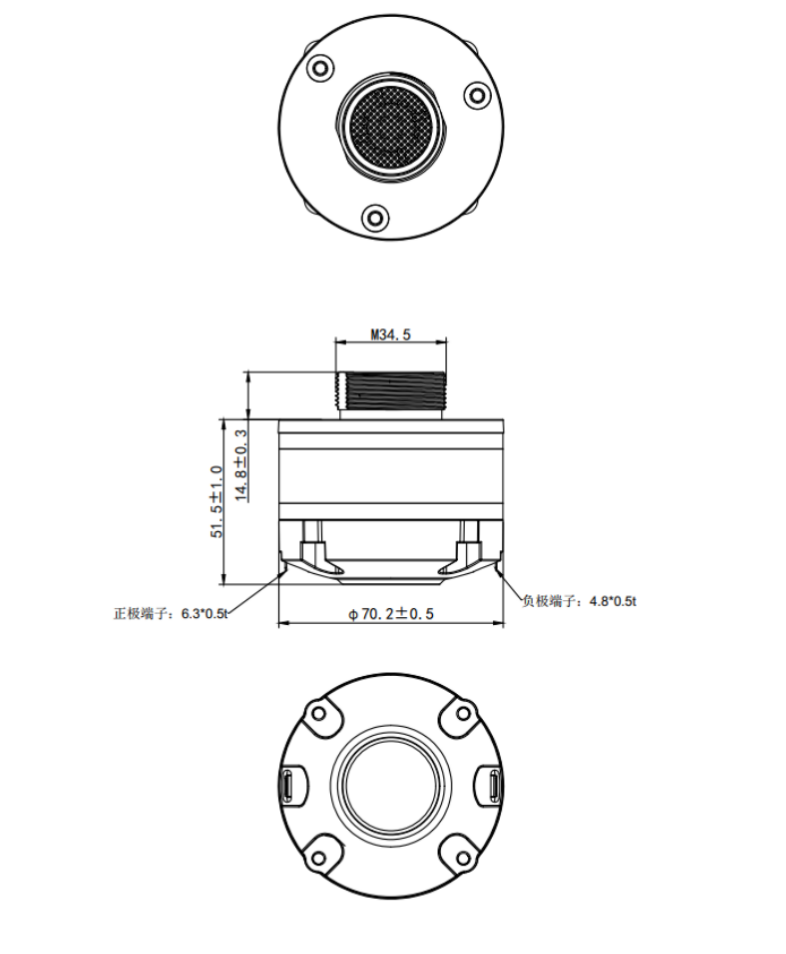

| Model | JS-H3504 | Mounting Information | |
|---|---|---|---|
| Nominal diameter | 1.38“ | Overall diameter | 72 |
| Power rating | 20“ | Overall depth | 51.5 |
| Max power rating | 40 | Mounting diameter | 34.5 |
| Rated impedance | 4 | Number of mounting holes | - |
| Sensitivity | 90 | Throat exit | 1.34" |

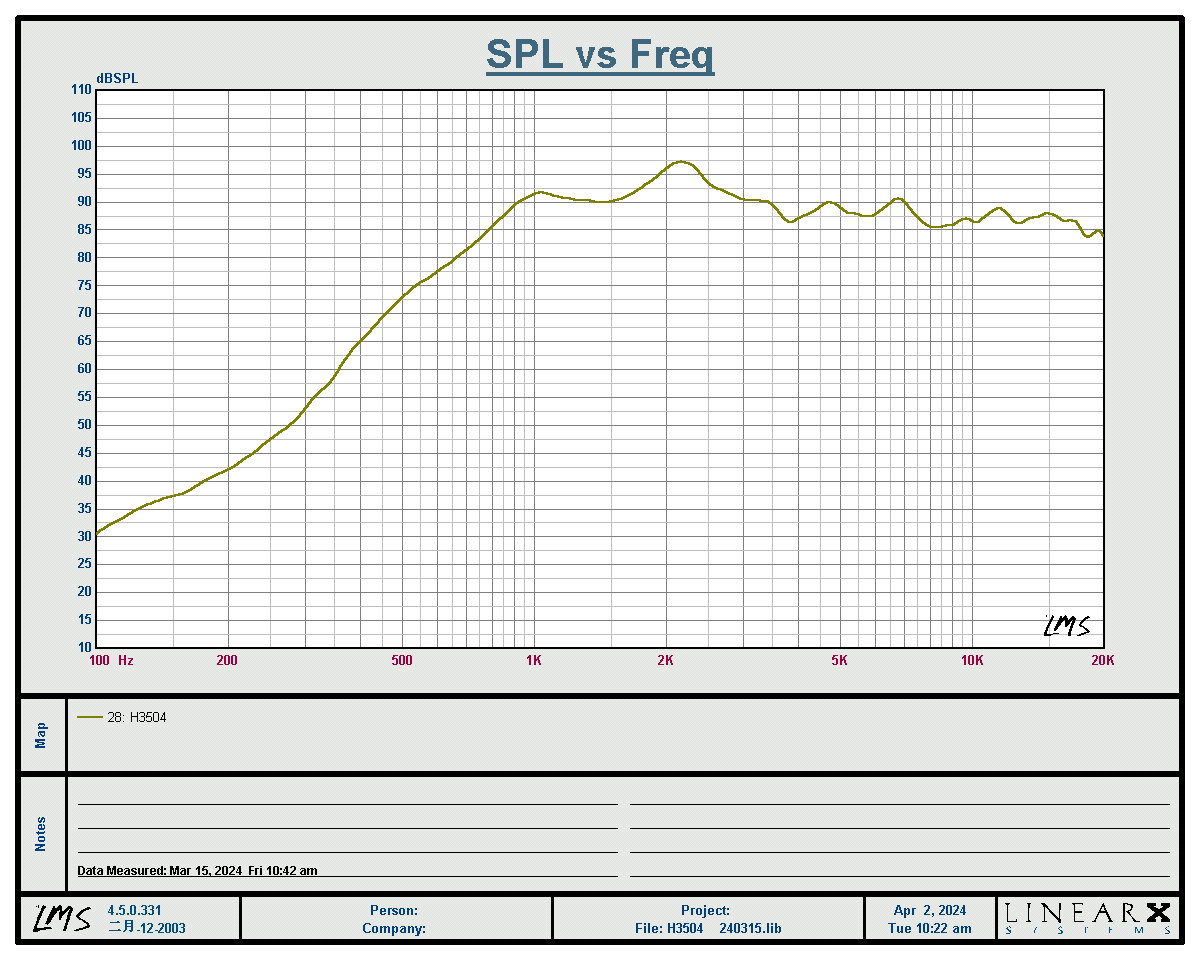

| Frequency range | 1000-20K Hz | ||
| Magnet material | Ferrite | ||
| Voice coil diameter | 25 | ||
| Voice coil material | Copper | ||
| Diaphragm material | PEN |
