Description

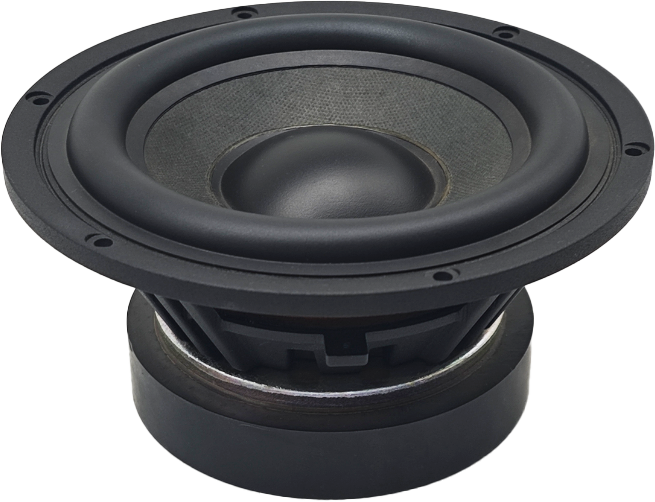

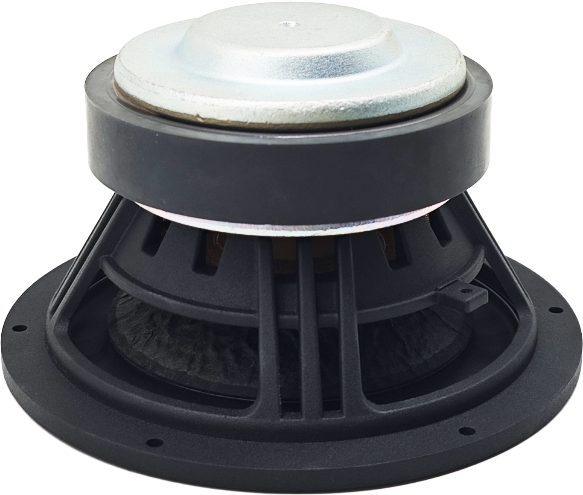

| Model | JS-6A28-P8 | Parameters | |
|---|---|---|---|
| Nominal diameter | 6.5“ | Re | 7.63 |
| Power rating | 40 | Le | 0.873 |
| Max power rating | 80 | Fs | 51.7 |
| Rated impedance | 8 | Mms | 36.123 |
| Sensitivity | 86 | Rms | 4.055 |

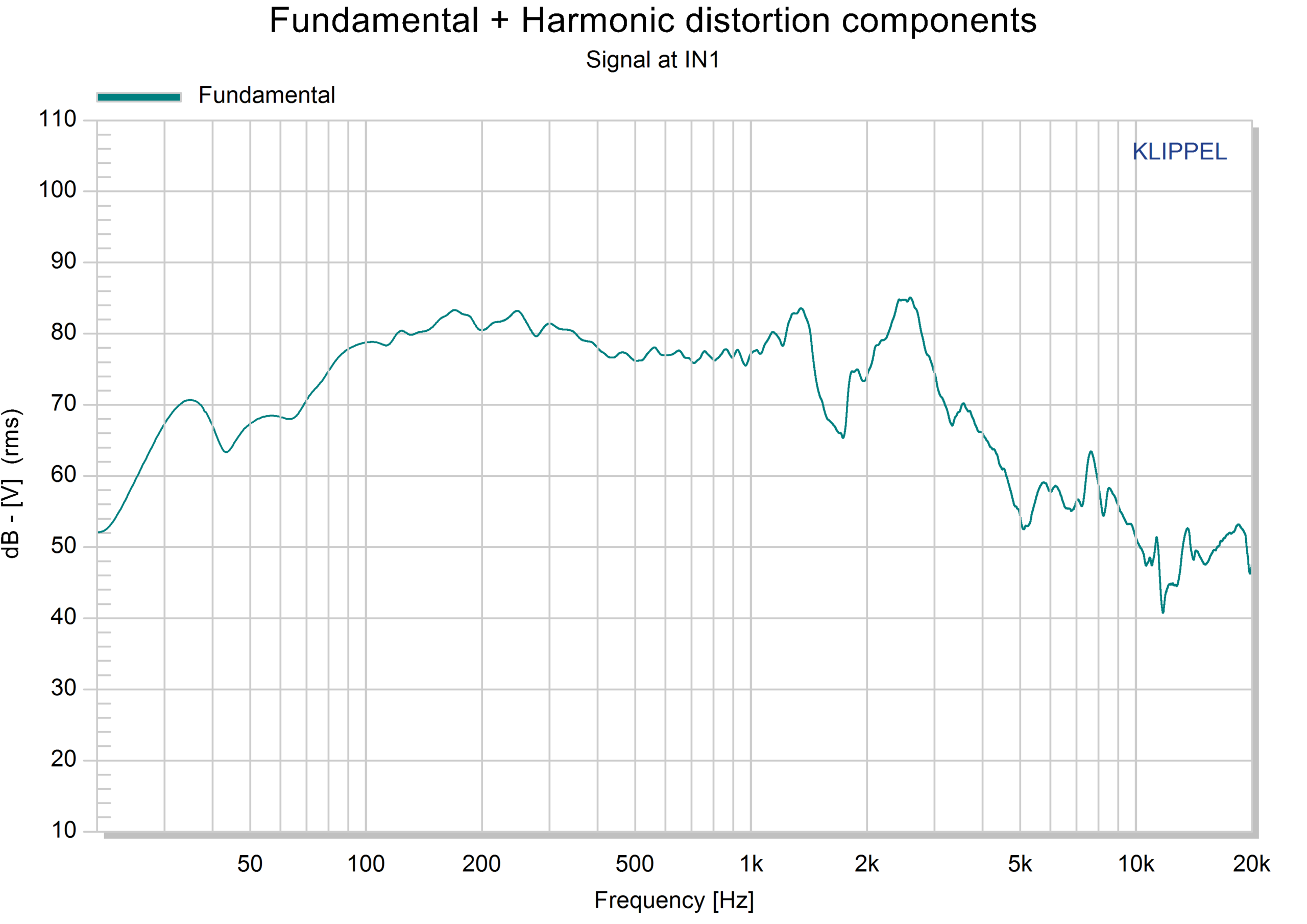

| Frequency range | 44-3K Hz | Cms | 0.262 |
| Chassis material | Aluminum | BI | 16.248 |
| Magnet material | Ferrite | Qms | 2.896 |
| Voice coil diameter | 38 | Qes | 0.339 |
| Voice coil material | Copper | Qts | 0.304 |
| Cone material | Paper | Vas | 5.5829 |
| Surround material | Rubber | Sd | 122.72 |
