Description

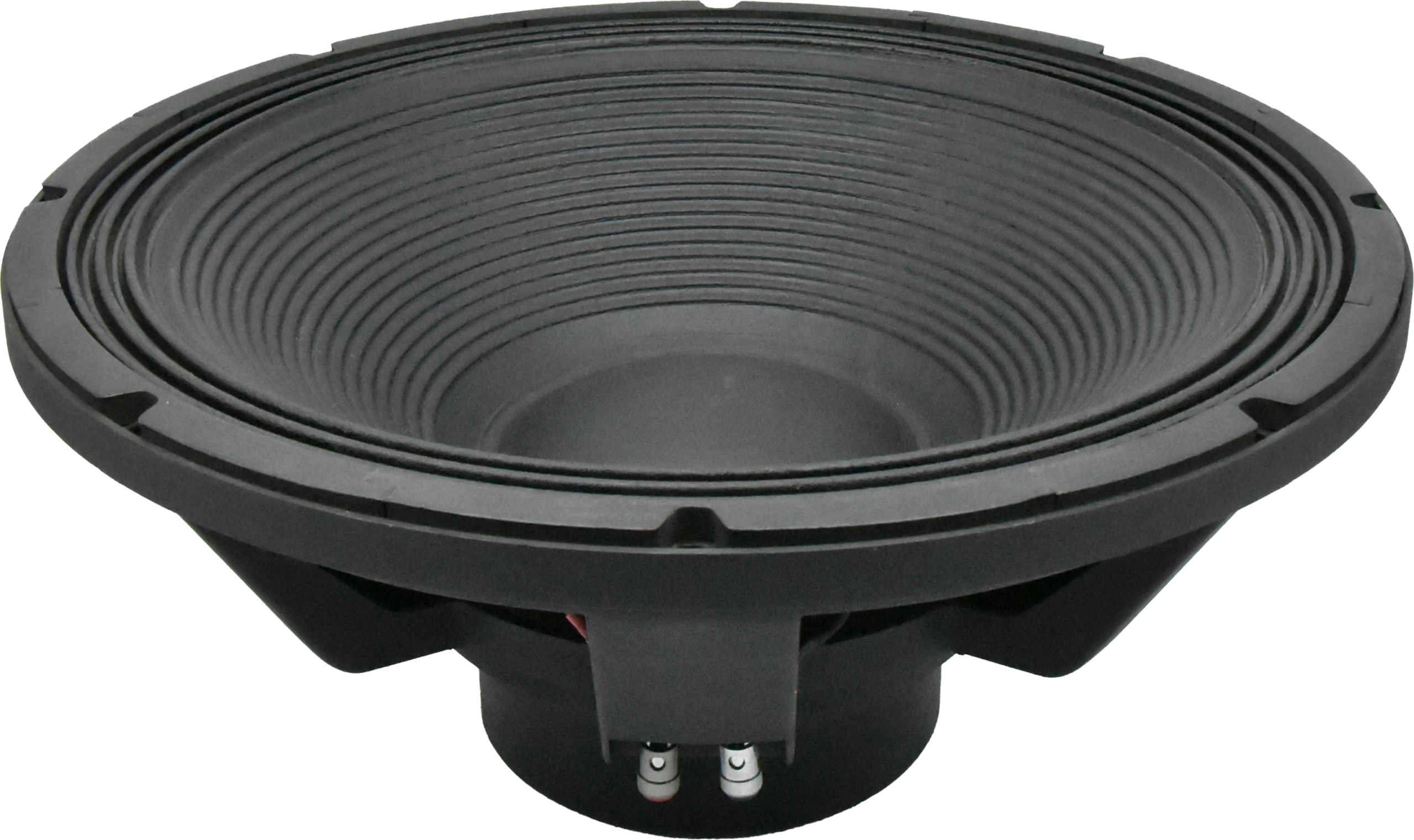

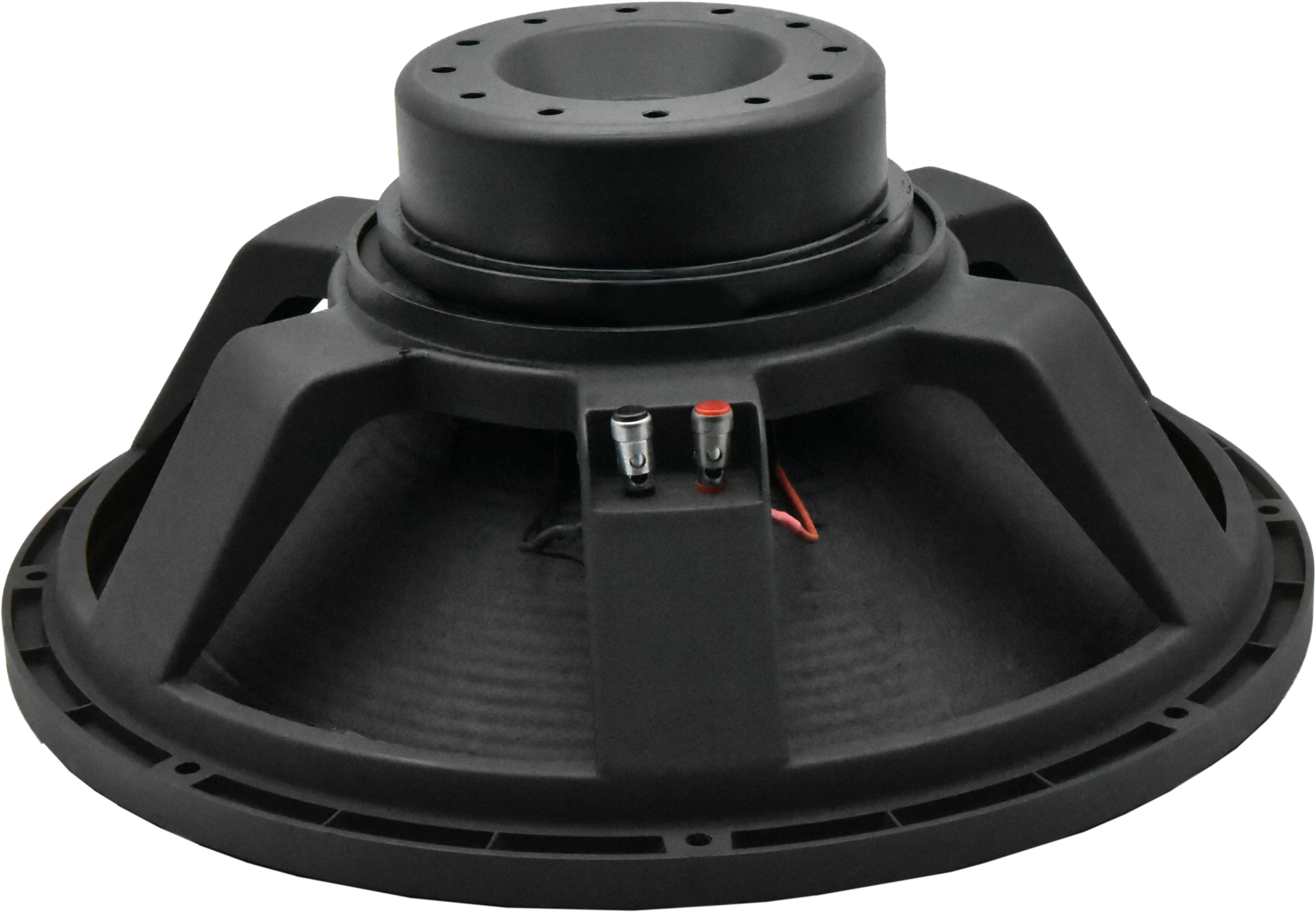

| Model | JS-18A2-125P8 | Parameters | |
|---|---|---|---|
| Nominal diameter | 18" | Re | 5.7 |
| Power rating | 800 | Le | 0.683 |
| Max power rating | 1600 | Fs | 43.1 |

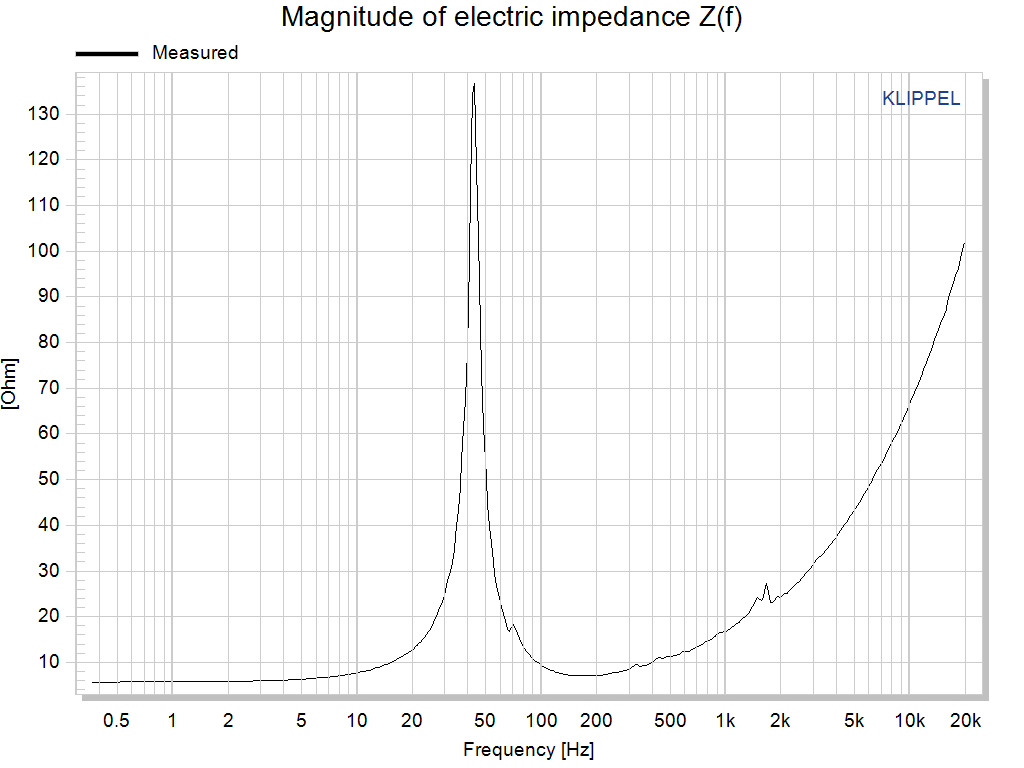

| Rated impedance | 8 | Mms | 246.501 |
| Sensitivity | 99 | Rms | 8.112 |

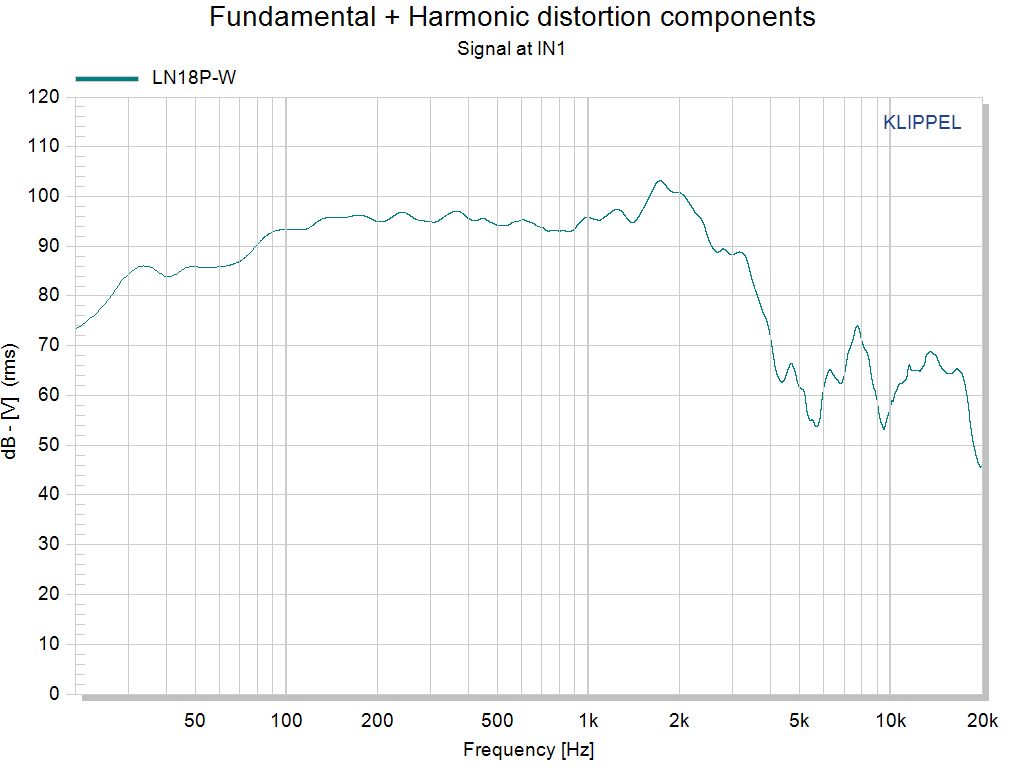

| Frequency range | 150-2.3K Hz | Cms | 0.055 |
| Chassis material | Aluminum | BI | 32.682 |
| Magnet material | Neodymium | Qms | 8.22 |
| Voice coil diameter | 125 | Qes | 0.356 |
| Voice coil material | CCAW | Qts | 0.341 |
| Cone material | Paper | Vas | 146.3457 |
| Surround material | Cloth | Sd | 1365.72 |
